Mobile Internet (DST) in Ubuntu with a Nokia E51

I heard about Ubuntu’s 3G support quite a while back, but yesterday was the first time I actually tried it out. This was done using a Nokia E51 connected via USB with a DST Easi card with Ubuntu 9.04. Please note of the importable troubleshooting note below

  1. Connect the phone and set connectivity mode to “PC Suite”
  2. A configuration wizard should pop up as shown below:

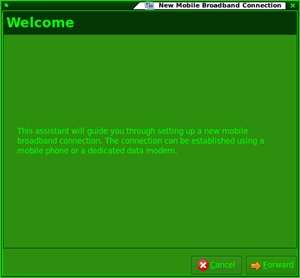

    New Mobile Broadband Connection - Welcome screen

    If the wizard does not show, start it manually by following these steps:

    1. Go to the Ubuntu Menu: System > Preferences > Network Connections
    2. Go to the “Mobile Broadband” tab and click the “Add” button

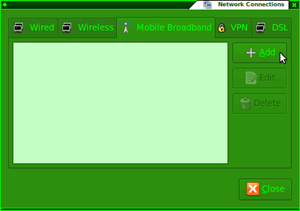

      Network Connections - Add a new Mobile Broadband Connection
  3. Select the any setting as they will be manually edited later. For this example I chose Albania and Vodafone as the country and provider respectively as it has minimal configuration changes

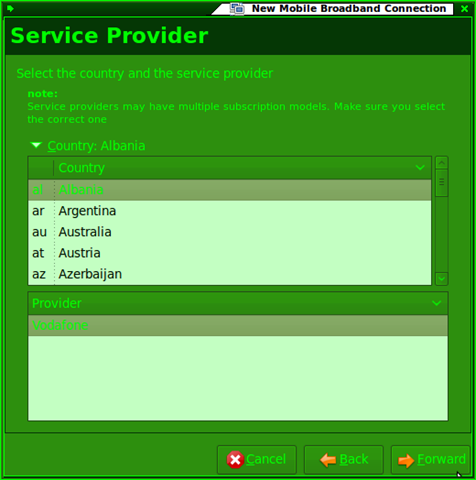

    New Mobile Broadband Connection - Select Service Provider
  4. Give the connection a name: “dst.internet”

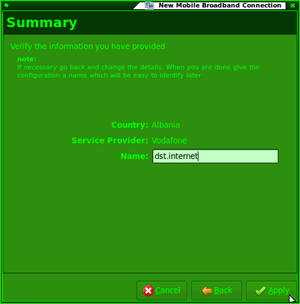

    New Mobile Broadband Connection - Name it / Summary
  5. Go to Network connections (System > Preferences > Network Connections) and edit the newly created connection

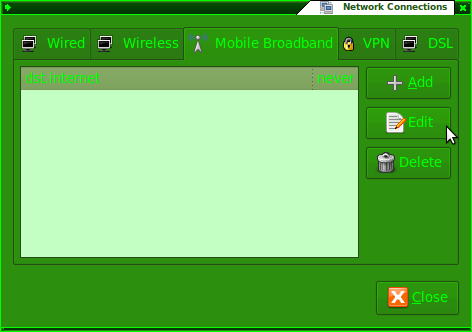

    Network Connections - Edit new connection
  6. Ensure the configuration is as follows:
    • Number: *99#
    • APN: dst.internet
    • Username and password can be left blank
    • If the Albania > Vodafone settings were used, only the APN needs to be changed

    Edit connection - Mobile Broadband Tab

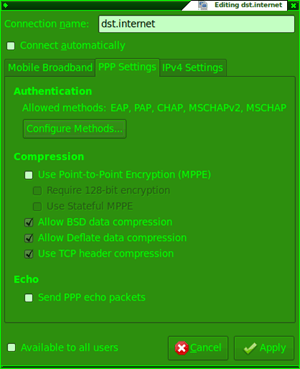

    Edit connection - PPP Settings Tab

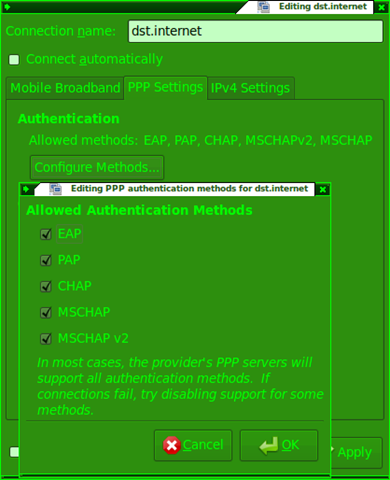

    Edit connection - PPP Settings Tab - Configure Methods...

    Edit connection - IPv4 Settings Tab

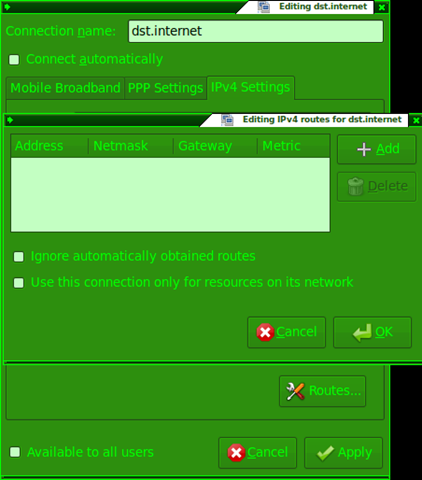

    Edit connection - IPv4 Settings Tab - Routes

  7. Left click the network manager applet and connect to the newly created “dst.internet” connection

    Connect to dst.internet via Network Manager applet

  8. Enjoy your mobile broadband =)

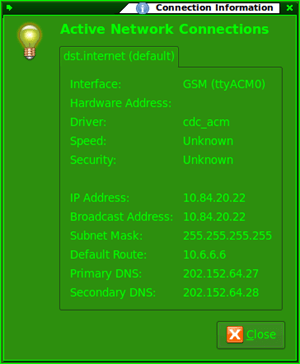

    Connection Information

Now I wonder if this works for the DST Go! and bmobile Zoom! modems….

Troubleshooting Note

If you have a problem connecting please note this bug that causes the connection to timeout if there is a shell running as root. So close all terminals open. It took me 2 hours to figure this out so I hope you won’t have to suffer the same.

Advertisements

2 thoughts on “Mobile Internet (DST) in Ubuntu with a Nokia E51”

  1. Hello , thanks for this tutorial .
    but can you give a detail if i have the bug problem , i’ve try to read the link , but i cant understand the solution , thanks man
